QSFP28 Transceivers

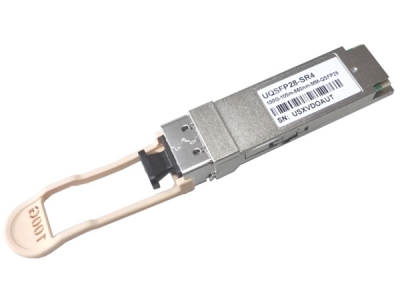

100G QSFP28 SWDM 150M

Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation <3.5W
Reach up to 75m/100m/150m on OM3/OM4/OM5 Multimode Fiber (MMF)
4x25Gb/s VCSEL-based transmitter
4x25G CAUI-4 electrical interface
Duplex LC receptacles
I2C management interface
  • USource QSFP28 SWDM4 transceiver built-in 4x25G VCSEL laser 850nm, 880nm, 910nm and 940nm for 100G Ethernet links over duplex multimode fiber. It transmit up to 150m over OM5 fiber, which can meet the requirement of big Data Center.

    SWDM MSA
    MMF type Distance for 40G Channel IL by 40G Distance for 100G Channel IL by 100G
    OM3 240m 2.4 dB 75m 1.8 dB
    OM4 350m 2.8 dB 100m 1.9 dB
    OM5 440m 2.9 dB 150m 2.0 dB
