光纤收发器

百兆收发器

Features
Selectable optical link-loss alarm
Selectable four transmitting modes
IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 100Base-TX and FX Standard
Conform to 10Base-T, 100Base-Tx, and 100Base-Sx/Lx/Zx specifications
Comply with IEEE 802.1Q VLAN TAG, Spanning Tree standard
UTP port supports 10/100 and Half/Full-Duplex auto-negotiation
Store and Forward Switching Mechanism
Auto-Cross over for MDI/MDIX in TP port
Special Chipset IP113C is optional

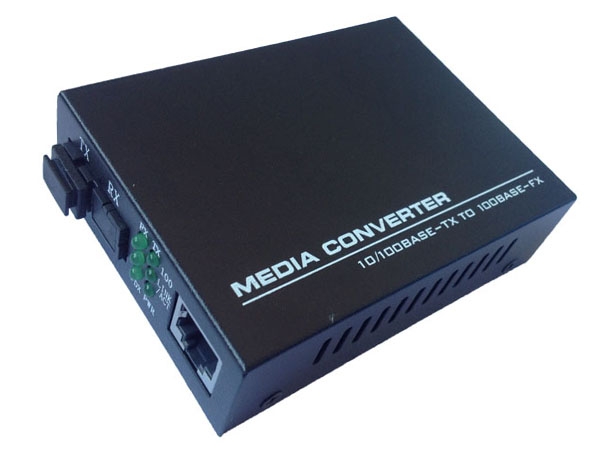

  • USource 10/100M Media Converter is a kind of Fast Ethernet Media Converter with the main function of photo electricity switch over between 100BASE-TX or 10BASE-TX and 100BASE-FX. Media converter transmits IP data over fiber, applied in many places where need long distance transmission. Low consumption and high resistance to electromagnetic interference of the optical fiber make the transmitting distance spread from 100m to several decades KM or hundred KM, improve the communication quality as well. And make the server, repeaters, switch, terminal PC connect easily.
    Protocols
    * IEEE802.3 Ethernet(10Mbps)
    * IEEE802.1d Building tree protocol
    * IEEE802.3u Quick Ethernet (100Mbps)
    * IEEE802.1Q VLAN
    * IEEE802.1p QOS PRI
    * IEEE802.3x Full duplex flux control
    * IEEE 802.3ab 100Base-TX/FX
    External or Internal power supply
    Optional optical receptacle SC FC ST, Single fiber and Dual fiber are available.
